Overview:

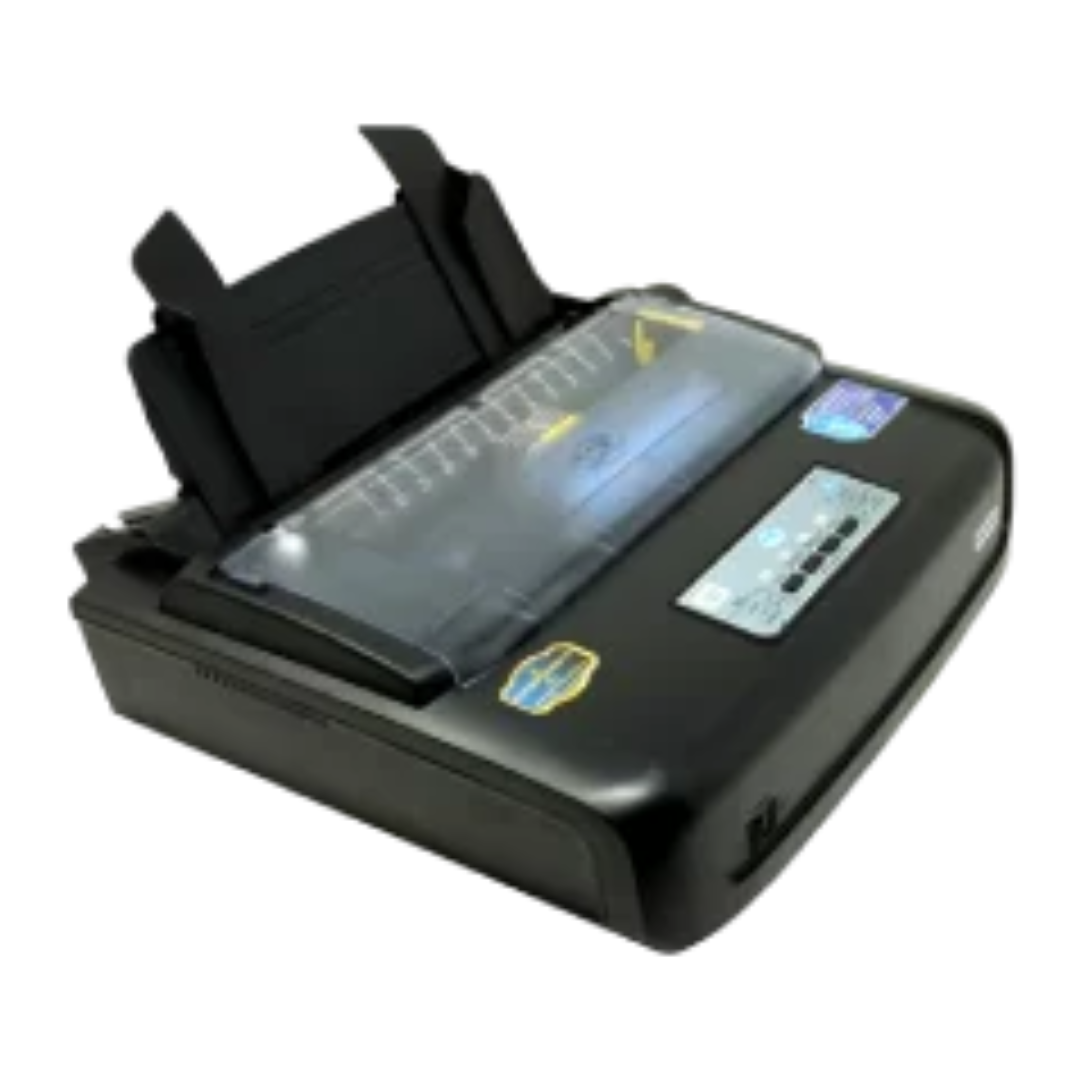

The MSP 270 CLASSIC PLUS printer offers high-speed performance with a printing speed of 270 CPS at 10 CPI and 375 CPS at 15 CPI, ensuring efficient output for various applications. It boasts exceptional reliability with 15,000 power-on hours and features an enhanced print head for extended durability. Equipped with iSense, a built-in self-diagnostic tool, it ensures smooth operation and easy troubleshooting. The printer supports multiple interfaces, including Parallel, USB, and Serial (optional), providing versatile connectivity options. Additionally, it operates across a wide voltage range of 90V-270V AC, making it suitable for diverse environments.
Key Features:
- High-speed printing: 270 CPS @ 10 CPI / 375 CPS @ 15 CPI.
- Reliability: 15,000 power-on hours.
- Enhanced print head life for durability.
- iSense – built-in self-diagnostic tool.
- Wide operating voltage: 90V-270V AC.
Specifications:
| Print Method | Serial Impact Dot Matrix |
| Number of Pins in Head | 9 pins |
| Print Direction | Bi-directional |
| Control Code | ESC / P, IBM Proprinter |
| Print Width | 80 Column |
| Print Head Life | 200 Plus Million Characters |
| Print Speed (High-Speed Draft) | 10 / 12 / 15 cpi – 350 / 360 / 400 cps |
| Print Speed (Draft) | 10 / 12 / 15 cpi – 270 / 320 / 375 cps |
| Print Speed (NLQ) | 10 / 12 / 15 cpi – 65 / 75 / 75 cps |
| Print Characteristics | Draft, Roman, Sans Serif, Script |
| Resident Barcode Fonts | Code 3 of 9 |
| Paper Handling (Paper Path) | Tractor / Manual (Top, rear, and bottom) |
| Continuous Tractor | Convertible push and pull |
| Cut Sheet (Single Sheet) | 3.5 – 10″ |
| Cut Sheet Width | 3.5 – 10″ |
| Paper Thickness | 0.3 mm |
| Continuous Paper | 3.5 – 10″ |
| Paper Feeding | Friction, Push Tractor |
| Copies | 1+3 with carbon |
| Line Spacing | 4.23mm (1/6″) or programmable in increments of 0.118mm (1/216″) |
| Input Data Buffer | 100 KB |
| Interface | Bi-directional parallel (IEEE-1284) nibble mode supported, USB 2.0 Full-Speed, Serial (Optional) |
| Ribbon Cartridge | Patented TVS-E ribbon cassette with user-replaceable Ink bank |
| Reliability (MTBF) | 15000 POH |
| Acoustics | 55 dB (A) in ISO 7779 Sonic Pattern |
| Emulation | EPSON ESC/P, IBM Proprinter |
| Environmental Conditions (Operating Temperature) | +5°C to +45°C |
| Environmental Conditions (Humidity) | 10% to 80% |
| Electrical Specification (Rated Voltage) | 90V – 270V AC |
| Electrical Specification (Rated Frequency) | 47 – 63 Hz |
| Power Consumption (Operating) | 34W – Self Test |
| Power Consumption (Standby) | 12 W |
| Printer Driver / Utility | Windows 9X, NT 4.0, ME, 2000, 2003, XP, VISTA, Windows 7, Linux |
| Dimensions | 433 x 379 x 147 mm |
| Weight | 5.7 kg |
| Warranty | 1 year |
