Overview

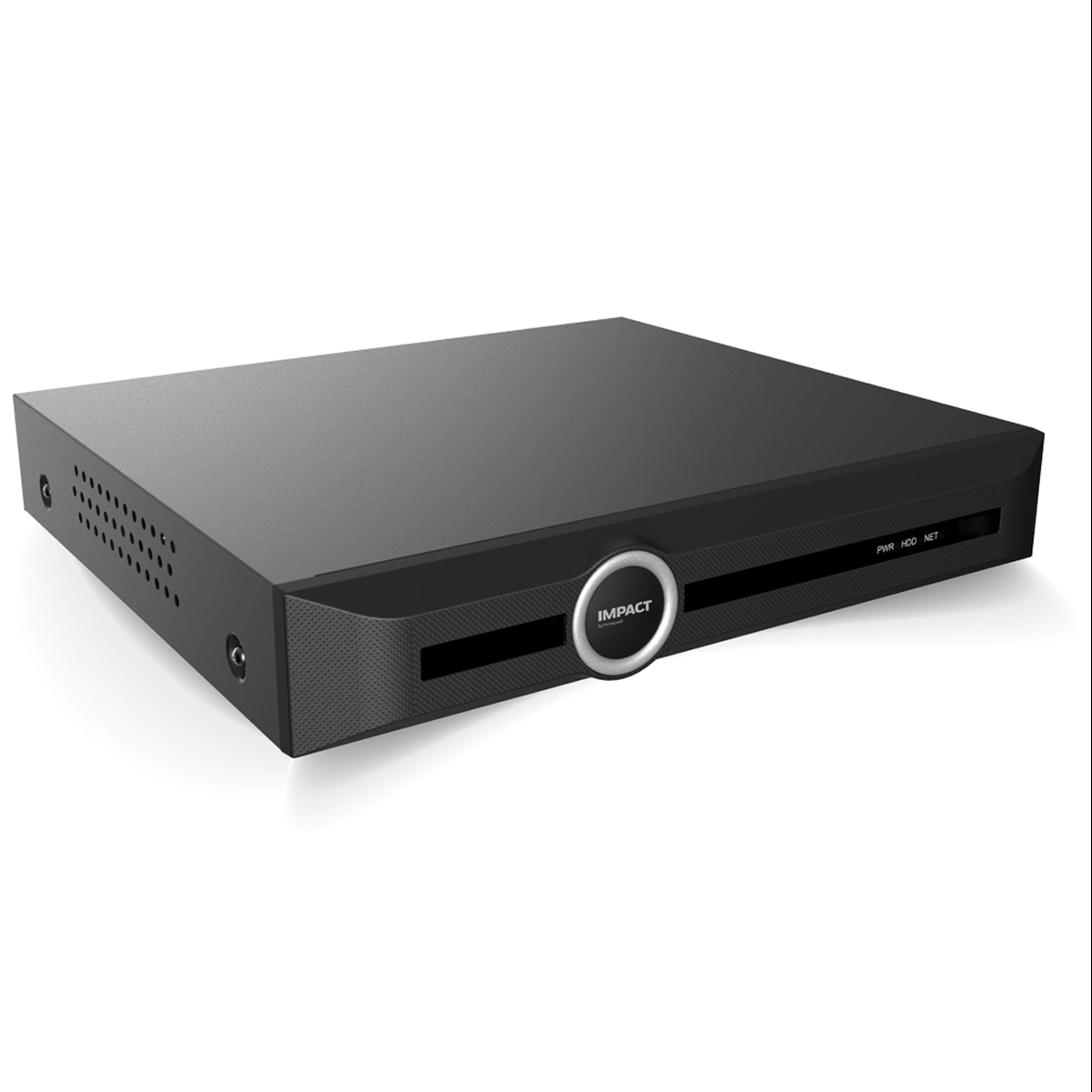

The Impact series Network Video Recorders (NVRs) are designed to provide high-quality video surveillance for environments that require clarity and advanced video analysis. This series is ideal for businesses and institutions like banks, offices, manufacturing industries, warehouses, and parking lots. Supporting multiple HD video formats (IH+265/H.265/H.264), the NVR offers the flexibility to connect third-party network cameras. With up to 40 channels of input and the ability to support up to 12MP resolution for live viewing, storage, and playback, the device ensures exceptional video performance. The NVR features HDMI and VGA simultaneous outputs, with HDMI supporting video up to 4K (3840 × 2160). Storage is optimized with four SATA interfaces, each supporting up to 10TB, and the IH+265 compression reduces storage space and costs by up to 75%. Additionally, it is equipped with dual 10/100/1000 Mbps network interfaces for efficient data transmission.
Key Features:
- Supports IH+265/H.265/H.264 Video Formats
- Up to 40 Channel Input
- Live View, Storage, and Playback at Up to 12MP Resolution
- HDMI Output Supporting Up to 4K (3840 x 2160) Resolution
- 4 SATA Interfaces, Up to 10TB Storage per HDD
- IH+265 Compression for Reduced Storage Space and Costs
- Dual 10/100/1000 Mbps Network Interfaces
Specification
| Weight | 3.35 kg |
|---|---|
| Dimensions | 0.75 × 34.7 × 44 cm |
| Brand | Honeywell |
| Video Input | 40 Channel |
| Max Resolution | 12MP |
| Bandwidth | Income 200Mbps; Outgoing 200Mbps |
| HDMI/VGA Output | HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 |
| Screen Split | 1/3/4/6/8/9/10/13/16/20/25/36/40/64 |
| Audio Output | 1x RCA |
| Decoding Format | IH+265/H.265/H.264 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 32x720P, 40x4CIF |
| Records Encryption | Yes |
| SATA | 4 SATA interface for 2 HDDs |
| Capacity | Up to 10TB for each HDD |
| Network Interface | 2xRJ45 self-adaptive 10/100/1000 Mbps network interface |
| USB Interface | 1xUSB 2.0, 1xUSB 3.0 |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS |
| System Compatibility | ONVIF (PROFILE S/T/G) |
| Web Version | Web6 |
| Language | English |
| Operating Conditions | -10°C~55°C, 10%~90% RH |
| Power Supply | 100~240V AC, 50~60 Hz |
| Consumption (without HDD) | ≤25W (without HDD) |
| Chassis | 1.5U |
| Warranty | 1 Year Manufacturer |
| Manufacturer | Honeywell INC. |
| Importer | Honeywell India Pvt Ltd |
