Overview

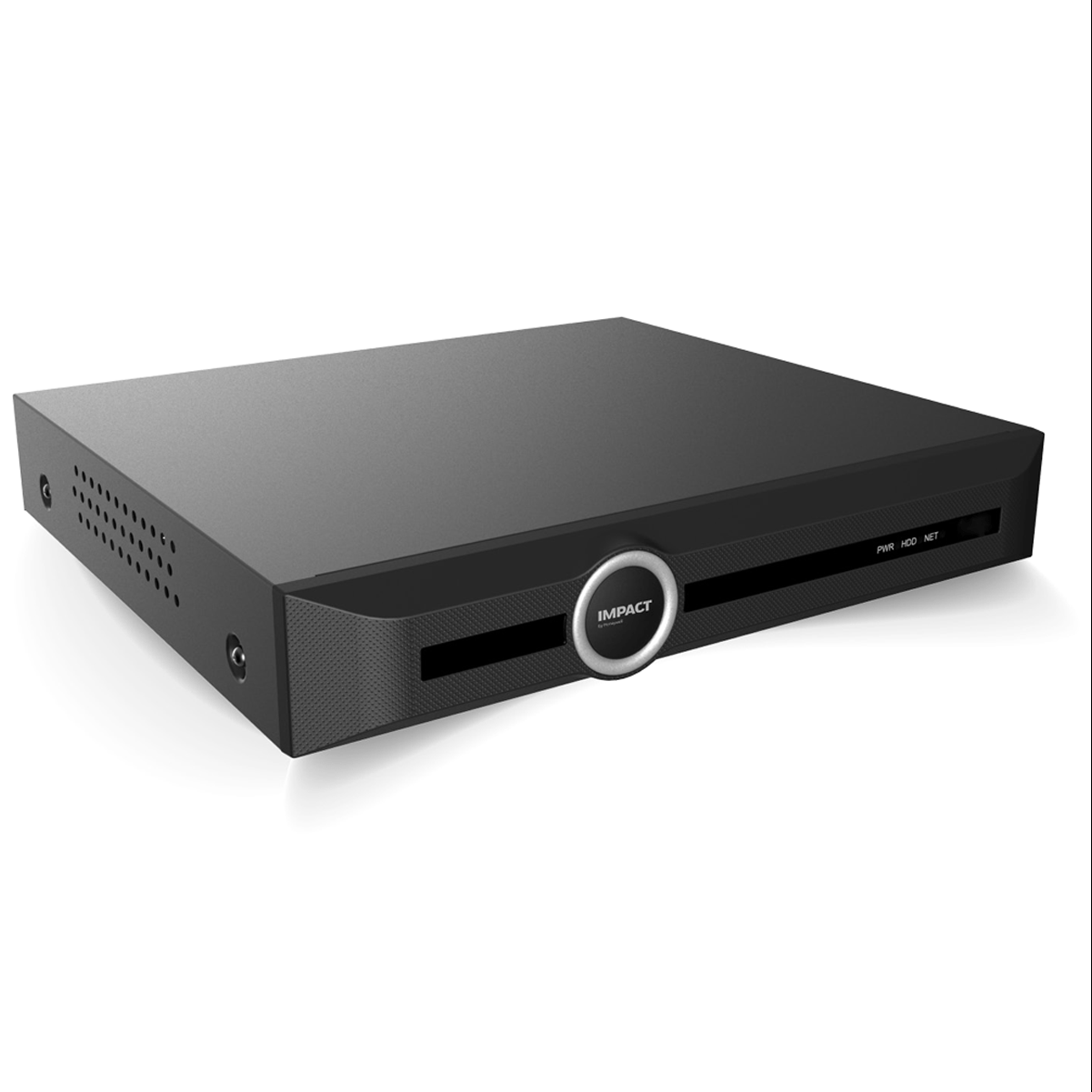

The Impact series Network Video Recorders (NVRs) are engineered for customers seeking high-definition video surveillance with enhanced features for sophisticated setups. This NVR is suitable for various environments like banks, offices, warehouses, and parking lots, where image clarity is essential. The device supports multiple video formats such as IH+265, H.265, and H.264, and is compatible with third-party network cameras. With the ability to input up to 40 channels, it ensures high-quality live viewing, storage, and playback at up to 12MP resolution. The NVR includes HDMI and VGA simultaneous outputs, with HDMI offering video up to 4K (3840 × 2160). Equipped with two SATA interfaces, each supporting up to 10TB, it ensures ample storage. Additionally, the IH+265 compression reduces storage space and costs by up to 75%, and the device is equipped with dual 10/100/1000 Mbps network interfaces for reliable data transmission.
Key Features:
- Supports IH+265/H.265/H.264 Video Formats
- Up to 40 Channel Input
- Live View, Storage, and Playback at Up to 12MP Resolution
- HDMI Output Supporting Up to 4K (3840 × 2160) Resolution
- 2 SATA Interfaces, Up to 10TB Storage per HDD
- IH+265 Compression for Reduced Storage Space and Costs
- Dual 10/100/1000 Mbps Network Interfaces
Specifications
| Weight | 2.3 kg |
|---|---|
| Dimensions | 4.75 × 27.7 × 44 cm |
| Brand | Honeywell |
| Video Input | 40 Channel |
| Max Resolution | 12MP |
| Bandwidth | Income 320Mbps; Outgoing 320Mbps |
| HDMI/VGA Output | HDMI 1-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800 |
| Screen Split | 1/3/4/6/8/9/10/13/16/20/25/36/40/64 |
| Audio Output | 1x RCA |
| Decoding Format | IH+265/H.265/H.264 |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability | 3x12MP, 4x8MP, 4x6MP, 5x5MP, 8x4MP, 9x3MP, 16x1080P, 32x720P, 40x4CIF |
| Records Encryption | Yes |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 10TB for each HDD |
| Network Interface | 2xRJ45 self-adaptive 10/100/1000 Mbps network interface |
| USB Interface | 1xUSB 2.0, 1xUSB 3.0 |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS |
| System Compatibility | ONVIF (PROFILE S/T/G) |
| Web Version | Web6 |
| Language | English |
| Operating Conditions | -10°C~55°C, 10%~90% RH |
| Power Supply | 100~240V AC, 50~60 Hz |
| Consumption (without HDD) | ≤25W (without HDD) |
| Chassis | 1U |
| Warranty | 1 Year Manufacturer |
| Manufacturer | Honeywell INC. |
| Importer | Honeywell India Pvt Ltd |
| Country of origin |  China |
