Overview

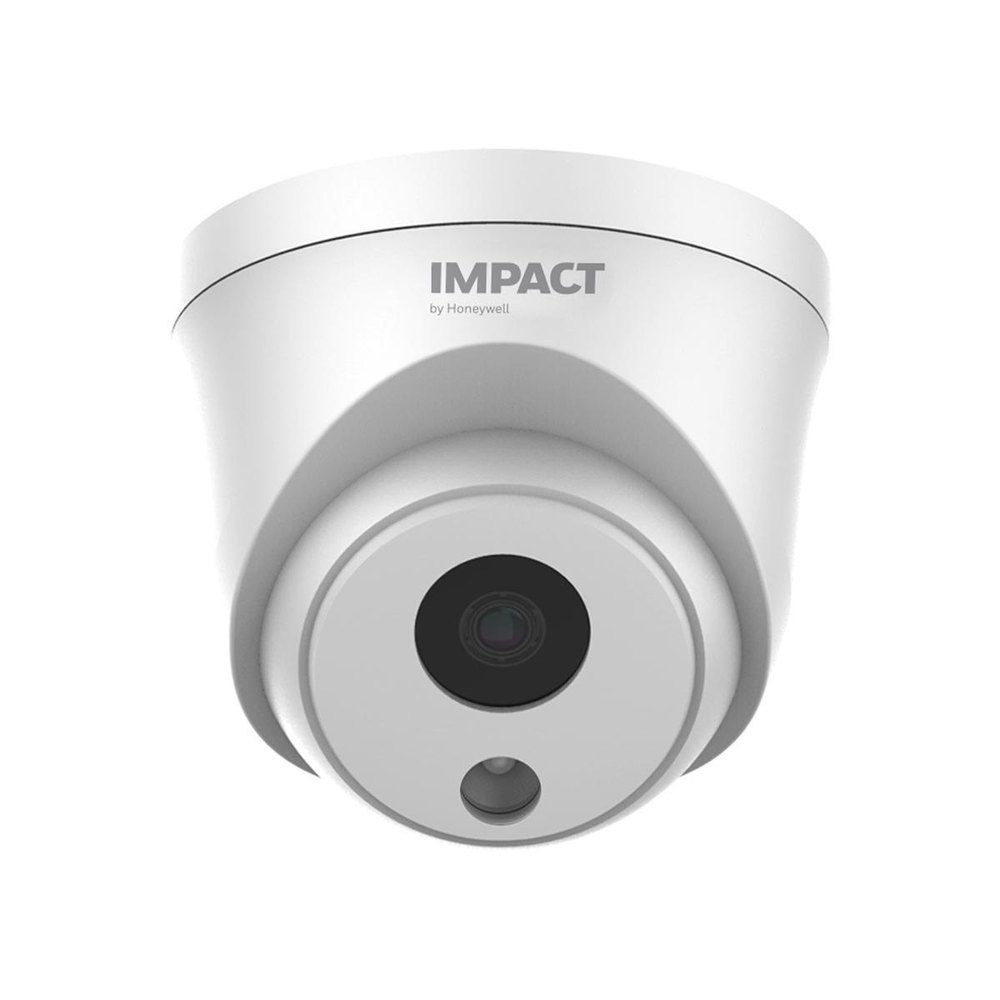

The Impact IP series offers high-quality, affordable surveillance solutions tailored for small to medium-sized businesses, including retail shops, gyms, schools, and residential homes. This series includes high-resolution IP IR cameras available in eyeball dome and bullet configurations, with both fixed and variable lens options. Designed to meet diverse customer needs, these cameras are equipped with various variants of IR LEDs, ensuring excellent night-time surveillance with a 30m IR range. The cameras are IP66/IP67 rated, making them durable and suitable for both indoor and outdoor use. With the ability to capture up to 2560×1440@30fps, they offer high-definition clarity and support IH+265/H.265/H.264 compression formats for efficient storage. Equipped with features such as smart IR, tripwire detection, and built-in microphones, these cameras ensure superior performance and enhanced security.
Key Features:
- High-definition resolution: Up to 2560×1440@30fps
- IR surveillance: Up to 30m IR range with Smart IR for better clarity at night
- Built-in microphone for audio surveillance
- Advanced detection: Supports tripwire and perimeter detection
- Weather-resistant: IP66/IP67 rating for indoor and outdoor use
- Wide operating conditions: -30°C to 60°C and 0-95% RH
- Power over Ethernet (PoE) for simplified installation
Specifications
| Model No. | I-HIE4PI-EL |
|---|---|
| CAMERA | |
| Image Sensor | 1/2.7” CMOS |
| Signal System | PAL/NTSC |
| Min Illumination | Color: 0.002Lux@ (F2.0, ACG ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan 0~340°, tilt 0~75°, roate 0~360° |
| Lens | |
| Lens Type | Motorized |
| Focus | 2.8mm |
| Lens Mount | 14 |
| Aperture | F1.6~F3.3, Fixed |
| FOV | Horizontal field of view 103.4° ; Vertical field of view: 58.1° |
| ILLUMINATOR | |
| IR LEDS | 1 |
| IR Range | Up to 30m |
| Wavelength | 850nm |
| COMPRESSION STANDARD | |
| Video Compression | IH+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U/ADPCM |
| Audio Bit Rate | 8K~48Kbps |
| IMAGE | |
| Max. Resolution | 2560×1440 |
| Main Stream | PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC: 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| OSD | 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
