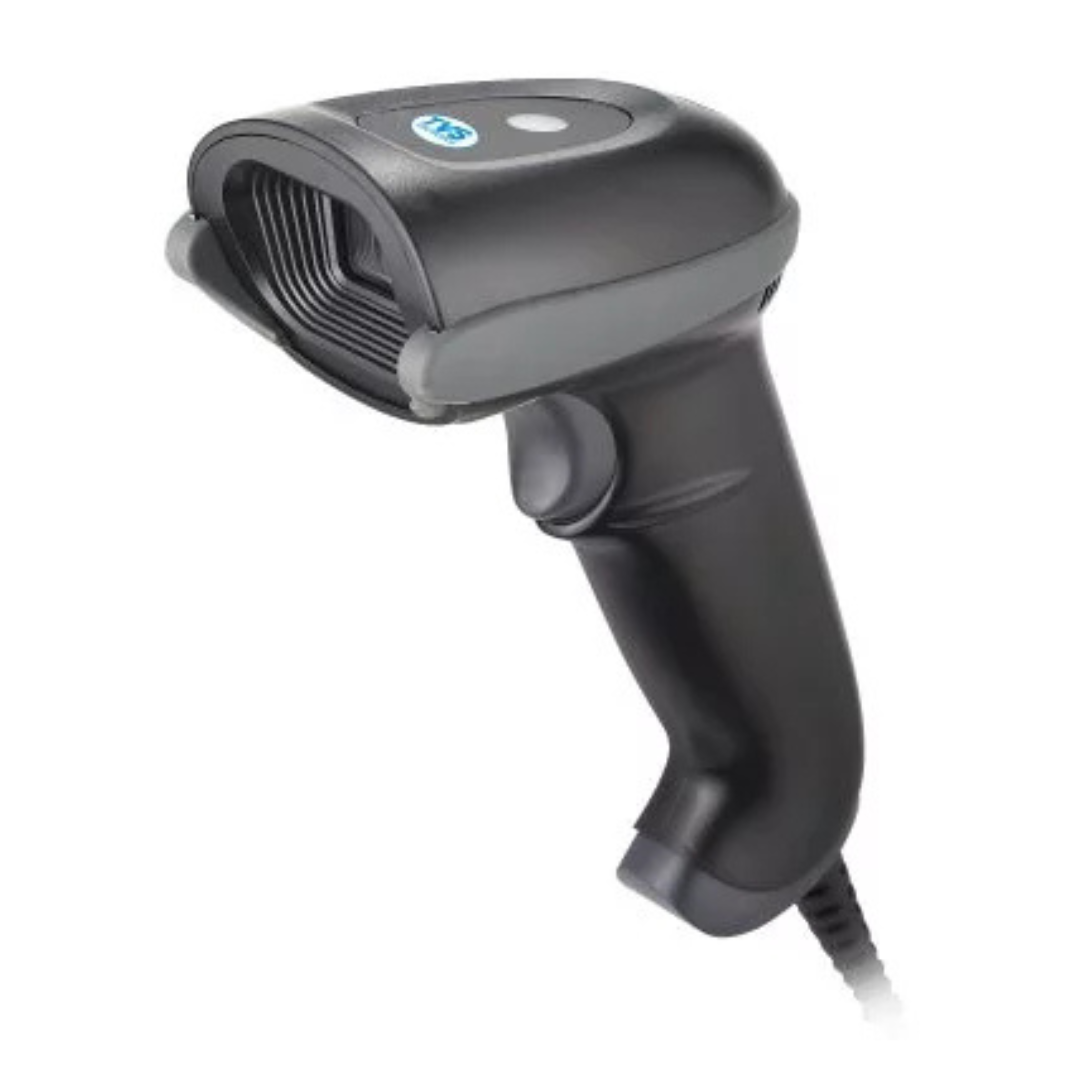

TVS BS-i203z 2D BARCODE SCANNER, DUAL INTERFACE: USB & RS232
MRP: ₹3,750.00
+ Free ShippingOverview:
The BS i203z PLATINA is a fast, accurate, reliable, and lightweight 2D hand-held wired barcode scanner. Its ergonomic grip ensures comfortable operation, while advanced decoding technology enables intensive scanning for extended periods. Constructed from rugged and durable materials, it is designed to withstand demanding environments, including intense temperatures, shocks, and vibrations.
Key Features:
- Fast, Accurate, and Reliable Scanning
- Durable Scanning Button
- High-Resolution Image Sensor (1280 x 800 pixels)
- User-Friendly Indicators (2-Color LED with Beep Sound)
- Advanced Decoding Technology for Complex 2D Codes
Specifications:
| Feature | Value |
|---|---|
| Aiming Element | 617 nm LED |
| Illumination | 617 nm LED |
| Imager field of view | 38.6° H x 24.9° V nominal |
| Image sensor resolution | 1280 x 800 pixels |
| Min print contrast | 25% |
| Skew/Pitch/Roll | ± 60°/ ± 60/360 deg |
| Min element resolution | 4 mil |
| Scan speed | 60 fps |
| Input Voltage | 5 VDC |
| Current | 300 mA (operating) |
| Supported host interface | RS 232, USB |
| User indicators | 2 color LED,beeper tone |
| Drop specification | 1.5 mts |
| Environmental sealing | IP 42 |
| Ambient light immunity | 0 – 100,000 lux |
| Weight | 150 g |
| Dimension | 180*70107 mm |
| Depth of field | Code39 (3mil) : 50-80mm Code39 (5mil) : 50-150mm EAN 13 (13mil) : 30-280mm Datamatrix (10mil) : 30-210mm QR code (10mil) : 30-200mm QR code (20mil) : 30-300mm |
