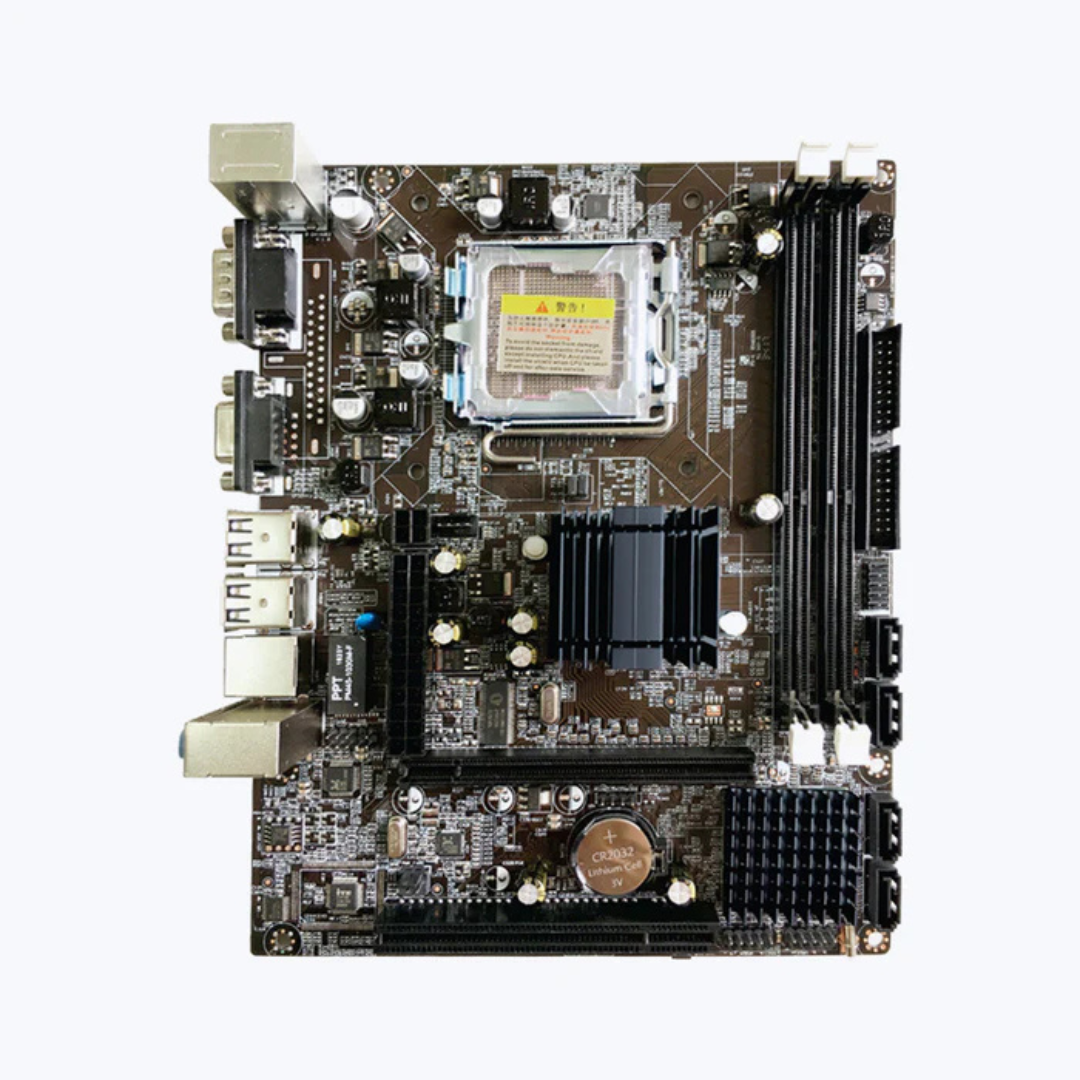

Zebronics G41 DDR3 Mother Board

Overview:

The ZEBRONICS Micro-ATX Motherboard (Intel G41 Chipset) is a budget-friendly, legacy-compatible board designed for basic computing and entry-level systems. Supporting older Intel Core 2 Quad/Duo, Pentium, and Celeron processors, it caters to users maintaining or upgrading older PCs. With DDR3 memory support (up to 8GB), basic expansion slots (PCIe x16 and PCI), and classic I/O ports like VGA, PS/2, and COM, it’s tailored for simple office tasks, light multimedia, or retro builds. While lacking modern features like USB 3.0 or SATA III, its robust onboard interfaces and IDE/SATA support make it practical for legacy hardware integration.

Key Features:

• Legacy CPU Support: Compatible with Intel Core 2 Quad/Duo, Pentium, and Celeron processors (LGA 775 socket).
• Intel G41 + ICH7 Chipset: Provides stable performance for basic computing needs.
• DDR3 Memory: Dual-channel support for up to 8GB (2 x DIMM slots, 800/1066MHz).
• Expansion Slots: 1 x PCIe x16 (for discrete GPUs) and 1 x PCI slot (for legacy add-on cards).
• Classic I/O Ports: Includes VGA, PS/2 keyboard/mouse, COM port, 4 x USB 2.0, and 3.5mm audio jacks.
• Onboard Connectivity: 4 x SATA ports, 1 x IDE slot, and front-panel/USB 2.0 headers for case integration.
• Integrated LAN: Realtek RTL8105E 10/100 Mbps Ethernet for basic networking.
• Micro-ATX Form Factor: Compact design for small builds or office PCs.
• Legacy Compatibility: IDE support for older drives and backward-facing BIOS (AMI).
• Power Delivery: 24-pin ATX + 4-pin 12V connectors for stable system operation.
