Overview

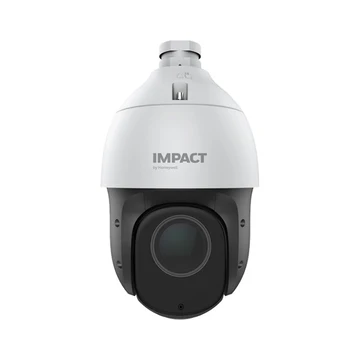

The Honeywell 2MP PTZ IP Camera is a high-performance surveillance solution designed for large-scale security applications such as parking lots, industrial sites, commercial buildings, and public spaces. With 1920 × 1080 resolution at 30fps, 25x optical zoom, and 16x digital zoom, it delivers detailed monitoring over vast areas. The camera features Human/Vehicle Classification for intelligent motion detection, reducing false alerts. Equipped with Smart IR technology, it provides clear visibility up to 150 meters in complete darkness. Built to withstand harsh environments, it comes with a built-in heater and IP66-rated weatherproof housing.
Key Features
- Full HD 1080p resolution (1920 × 1080) at 30fps for crisp video quality
- 25x optical zoom and 16x digital zoom for long-range surveillance
- Human/Vehicle Classification for smart motion detection
- Smart IR with a range of up to 150m for enhanced night vision
- IH+265/H.265/H.264/M-JPEG compression for efficient storage and bandwidth management
- Built-in heater for operation in extreme weather conditions
- Plugin-free access for easy remote viewing
- IP66-certified housing for outdoor durability and protection from dust and water
Specifications
| Model No. | I-HIP2PI-S25X |
|---|---|
| CAMERA | |
| Image Sensor | 1/2.8” CMOS |
| Signal System | PAL/NTSC |
| Min Illumination | Color: 0.001lux@ (F1.5, ACG ON), BW: 0lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 140dB |
| Optical Zoom | 25x |
| Digital Zoom | 16x |
| Lens | |
| Focal Length | 4.8mm~120mm |
| Zoom Speed | <4s |
| Angle of View | Horizontal: 58.5° (w)~2.8° (t) Vertical: 33.2° (w)~1.5° (t) |
| Aperture Range | F1.5~F3.8 |
| PAN&TILT | |
| Pan Range | 360° |
| Pan Speed | Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s |
| Tilt Range | -16°~90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s |
| 3D Position | Yes |
| Presets | 500 |
| Preset Accuracy | ±0.4° |
| Scan | 8 |
| Cruise | 16, up to 32 presets per cruise |
| Pattern | 8, each with 600s memory or 1000 orde |
| Power-off Memory | Yes |
| ILLUMINATOR | |
| IR LEDS | 6 |
| IR Range | Up to 150m |
| IR Irradiation Angle | Adjustable by Zoom |
| COMPRESSION STANDARD | |
| Video Compression | IH+265/H.265/H.264/M-JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate | 8K~48Kbps |
| IMAGE | |
| Max. Resolution | 2.0MP (1920×1080) |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| Third Stream | PAL: 25fps (352×288) NTSC: 30fps (352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR/HLC |
| ROI | 7 Dynamic Areas for Both Main and Sub Stream |
| OSD | 16×16, 32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Picture Overlay | Yes |
| Privacy Mask | Yes |
| Smart Defog | Yes |
| FEATURE | |
| Alarm Trigger | Harsh Voice Alarm, Motion Detection, Mask Alarm, Network Disable Alarm, IP Conflict, MAC Conflict Detection |
| Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Heatmap, On Duty Detection, Video Abnormal, Audio Abnormal |
| NETWORK | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, MULTICAST, RTMP |
| System Compatibility | ONVIF (PROFILE S/T/G) |
| ANR | Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Impact Series ANR Support NVR) |
| Remote Connection | ≤7 |
| Client | IH-View |
| Web Version | Web6 |
| INTERFACE | |
| Communication interface | 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio | 1/1 |
| Alarm | 1/1 |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 256 GB |
| GENERAL | |
| Web Client Language | English |
| Operating Conditions | -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH |
| Power Supply | DC12V±10%/POE |
| Power Consumption | 10.7W(IR OFF), 21W(IR ON) |
| Protection | IP66, Lightning protection, surge protection and voltage transient protection |
| Heater | Yes |
| Dimensions | 161x276mm (6.34×10.87inch) |
| Weight | 2.9kg(6.39lb) |
