Overview

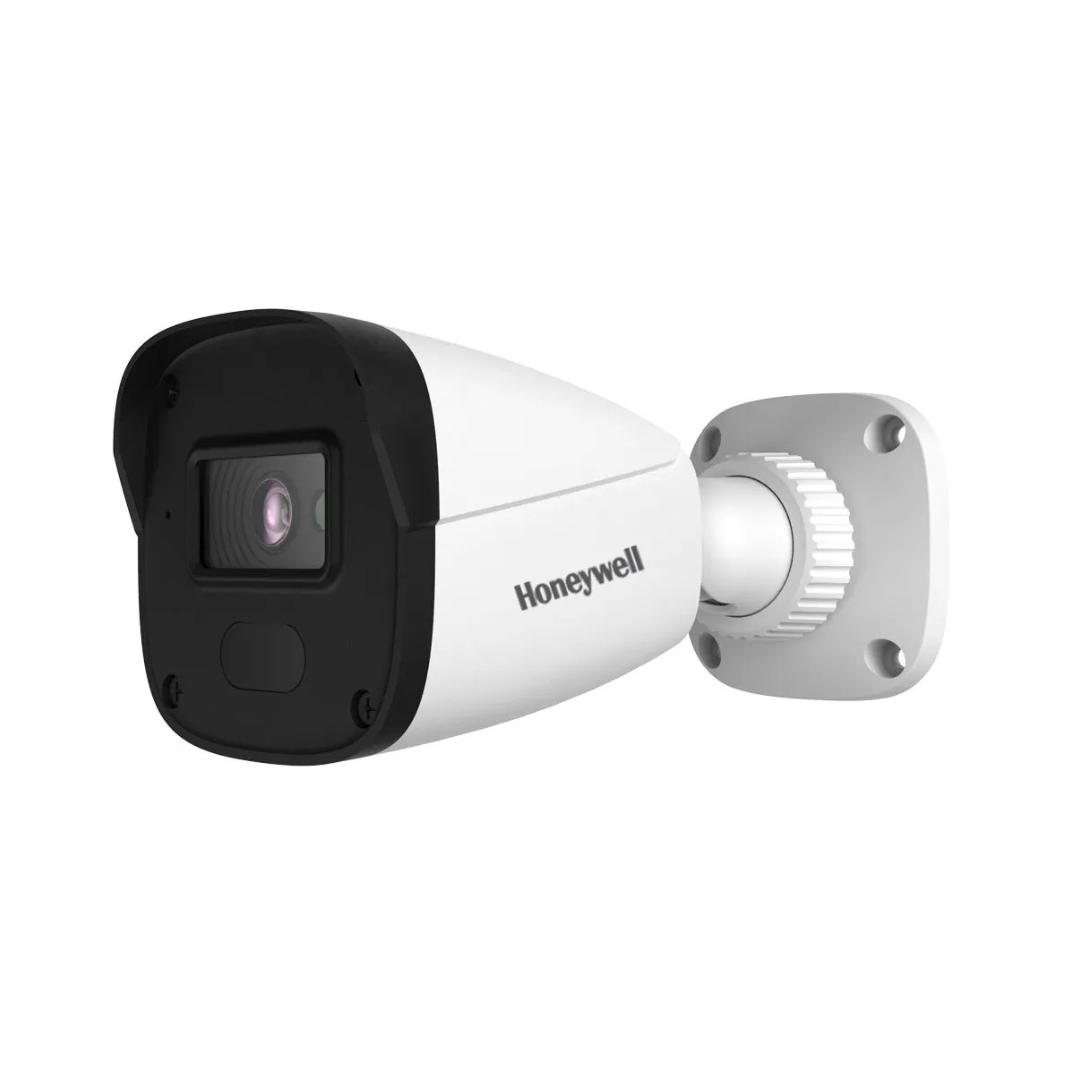

The Honeywell HIB2PI-L is a high-performance bullet camera designed for reliable surveillance in small and medium-sized applications. With a 2MP resolution (1920 × 1080) and H.265 codec compression, it ensures high-quality video output while optimizing storage efficiency. The IP67-rated plastic housing makes it durable for outdoor use, providing protection against dust and water. Featuring IR LEDs with a 20m infrared range, the camera delivers clear night vision for round-the-clock security. Additionally, it supports dual streams and mobile surveillance, ensuring flexible monitoring options.
Key Features
- 2MP resolution (1920 × 1080) with H.265 codec compression for high-quality video and efficient storage
- Up to 20m IR distance for clear night vision
- True Day/Night (TDN) with ICR auto switch for optimal lighting adjustments
- Supports dual streams for enhanced video management
- IP67-rated plastic body for outdoor durability
Specifications
| Weight | .240 kg |
|---|---|
| Dimensions | 16 × 7.48 × 7.38 cm |
| Camera | Image Sensor : 1/3.2” CMOS Number of Pixels (H x V) : 1920 x 1080 Electronic Shutter : 1/25s ~ 1/ 100000s Iris : Fixed Iris Min Illumination : 0.012lux @F1.2, AGC ON; 0 lux with IR 0.046 lux @ F2.0, AGC ON; 0 lux with IR Lens : 3.6 mm @F2.0, (fixed lens), horizontal field of view: 75.8° Day & Night : TDN Wide Dynamic Range : Digital WDR |
| IMAGE | Video Compression : H.265 / H.264 / MJPEG Resolution : 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 480 × 240, CIF Number of Streams : 2 (Main Stream, SubStream) Frame Rate : Main Stream:60Hz: 1080P / 720P (1 ~ 30fps); 50Hz:1080P/ 720P( 1 ~ 25fps ) Sub Stream: 60Hz: D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) Bit Rate : 64 Kbps ~ 6Mbps Encode Mode : VBR / CBR Image Settings : ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser ROI : 3, Each ROI to be configured separately |
| INTERFACES | Network : RJ45 |
| FUNCTIONS |
Remote Monitoring : Web browsing, CMS remote control Online Connection : Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission Network Protocol : UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, HTTP, 802.1x, UPnP, HTTPs, QoS Interface Protocol : ONVIF Motion Alarm : Supported IR Distance : 10 ~ 20m IP Rating : IP67 |
| OTHER |
POWER SUPPLY : DC 12V / PoE Power Consumption : <5 W IR Consumption ON : <1 W Operating Temperature : -20 deg C to 55 deg C, Humidity< 95% (non-condensing) Dimensions (mm) : 162.1 × 74.8 × 73.8 Weight : Approx. 0.24KG Installation : Ceiling mounting; Wall mounting |
| Warranty | 2 Years Manufacturer |
| Country of Origin | India |
